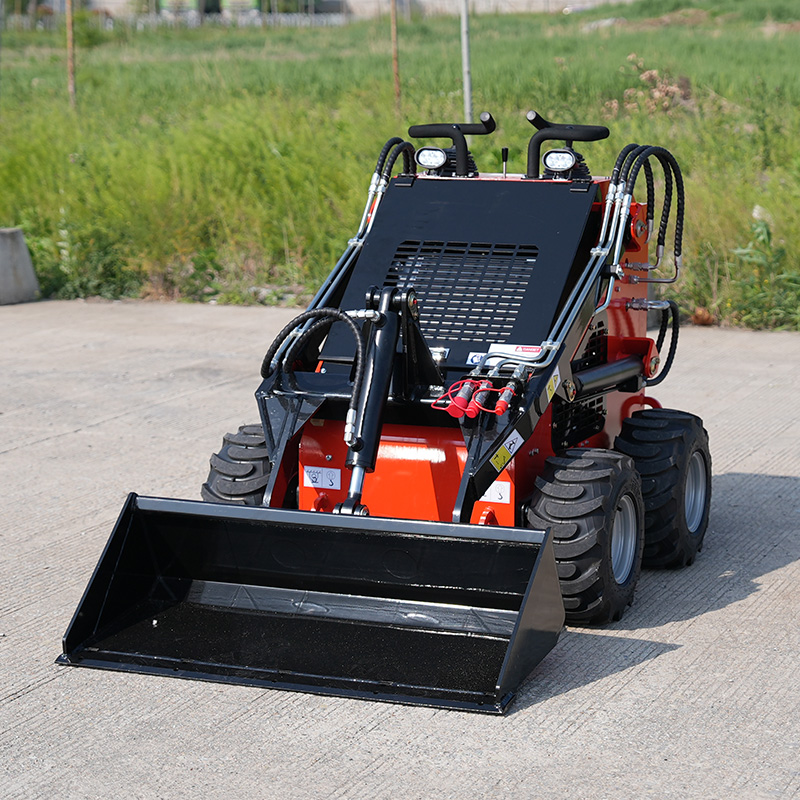

Mini Skid Steer Loader Technical Parameters

Mini Skid Steer Loader Technical Parameters

Model		SMH380
Working Device		Wheel Tires
		Metric
Performance	Rated Load	200 KG
	Bucket Capacity	0.15 m³
	Max. Lifting Force	375 KG
	Operating Weight	890 KG
Engine	Brand	Briggs & Stratton
	Model	3864
	Type	Gasoline
	Rated Power	17.1KW/3600 rpm
Dimension	Max. Working Height	2100mm
	Max. Dumping Height	1480mm
	Max. Dumping Distance	430mm
	Length With Bucket	2285mm
	Machine Width	1155mm
	Overall Height (not working)	1270mm

Send Inquiry Live Chat

Product Details

Mini Skid Steer Loader Manufacture

Mini Skid Steer Loader

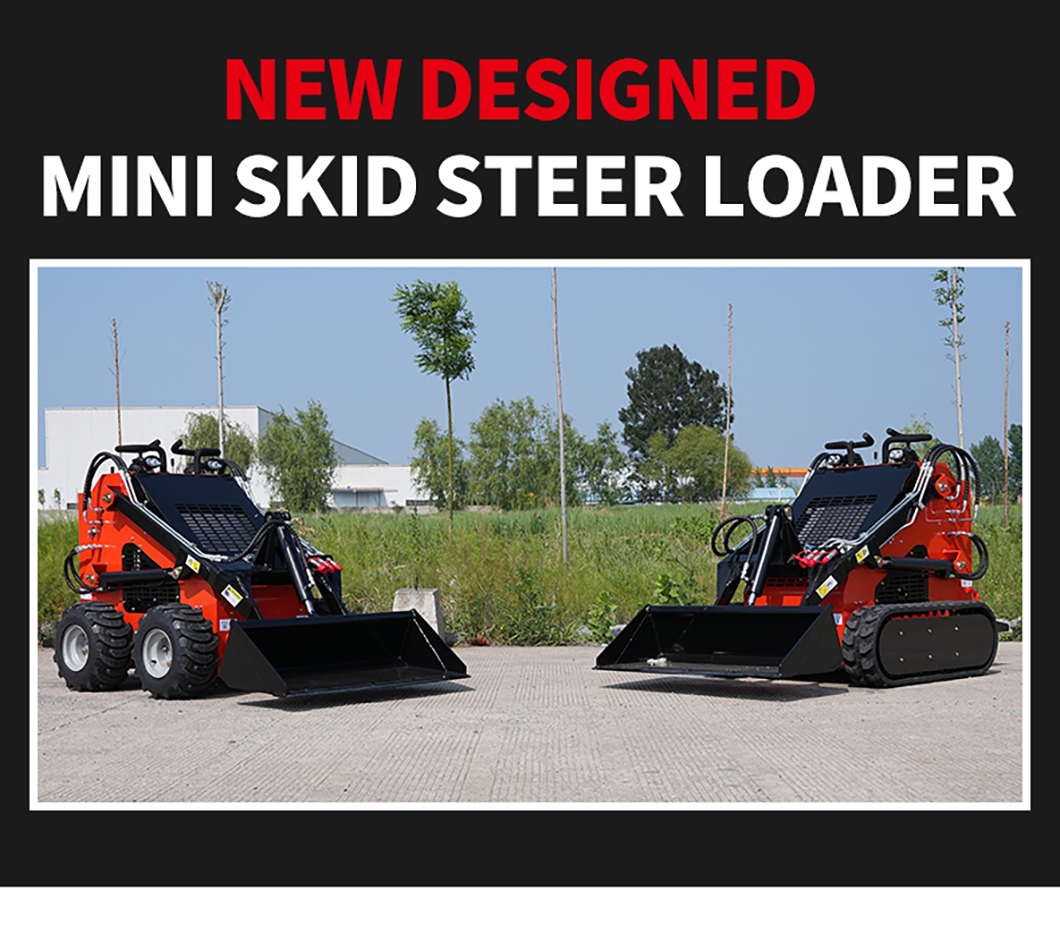

You can choose between tracked or wheeled models according to your preference.

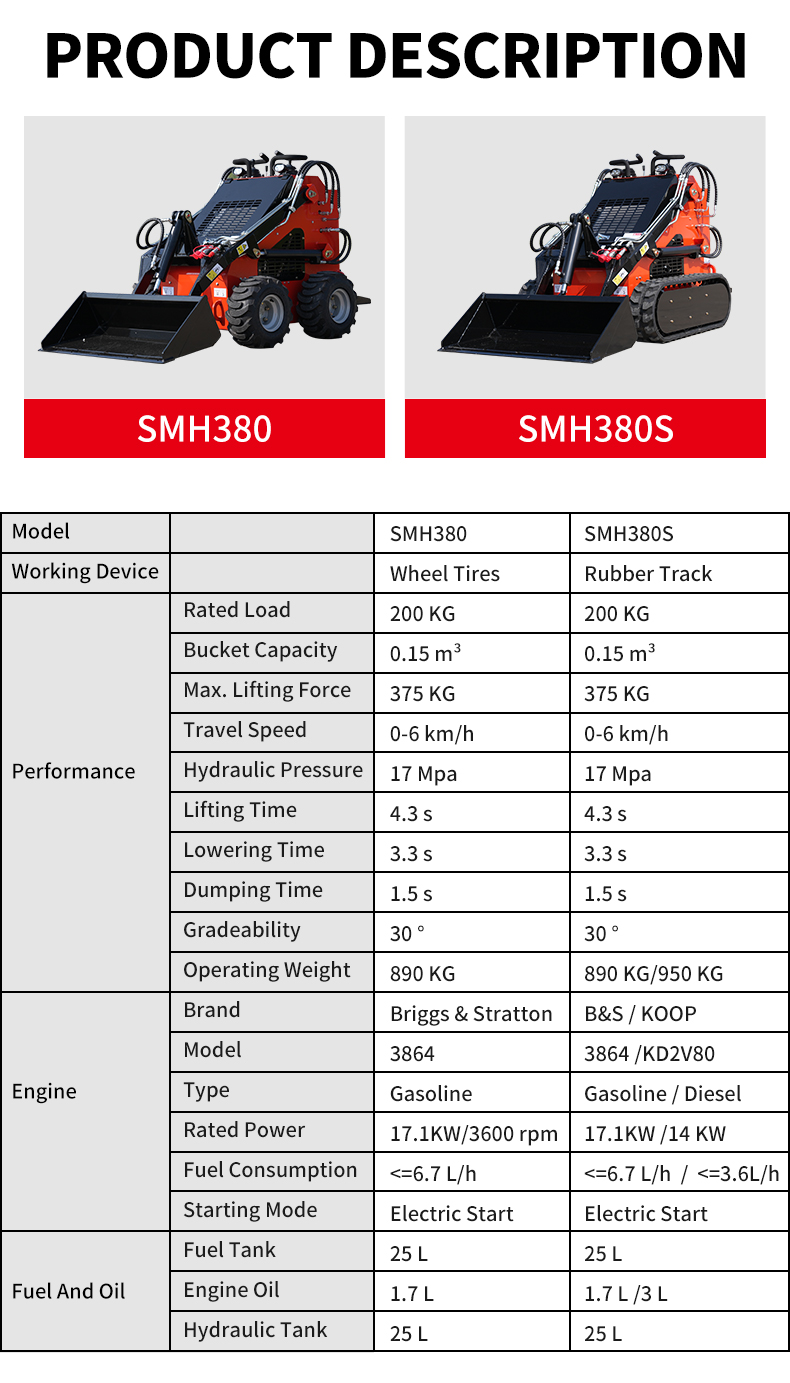

Mini Skid Steer Loader Technical

Detailed machine specifications, and support for customizing larger models. For example, the rated capacity is 500 kg.

Mini Skid Steer Loader Technical

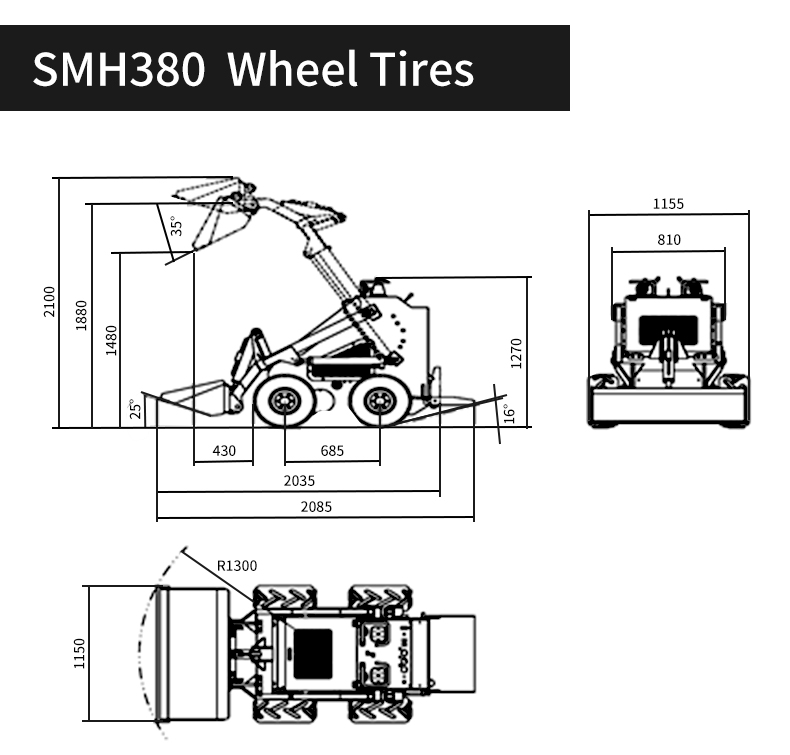

Simplified diagram of Wheel skid steer loader

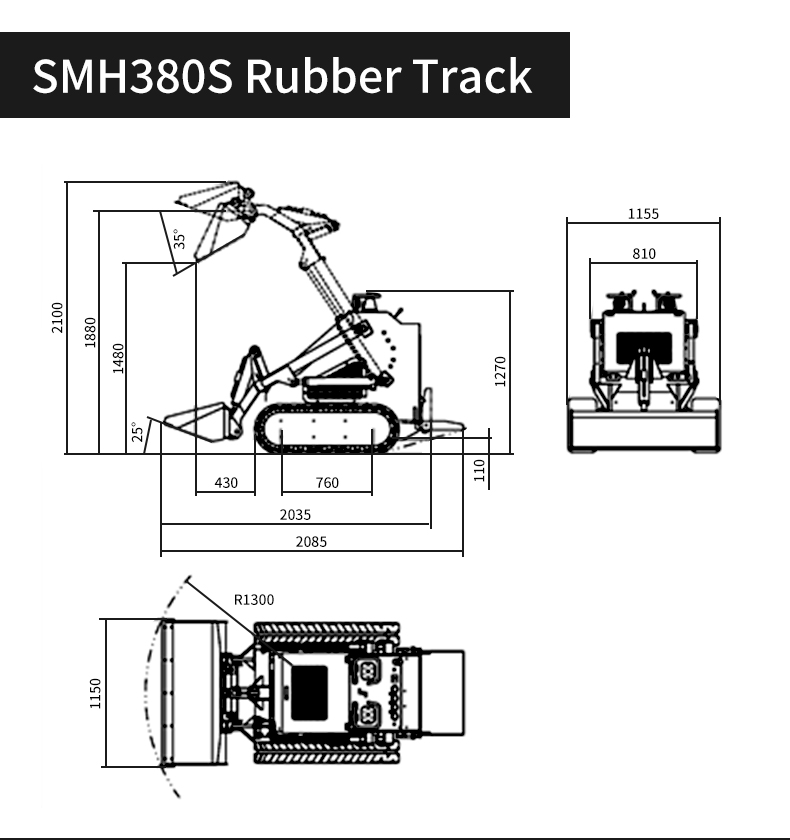

Simplified diagram of tracked skid steer loader

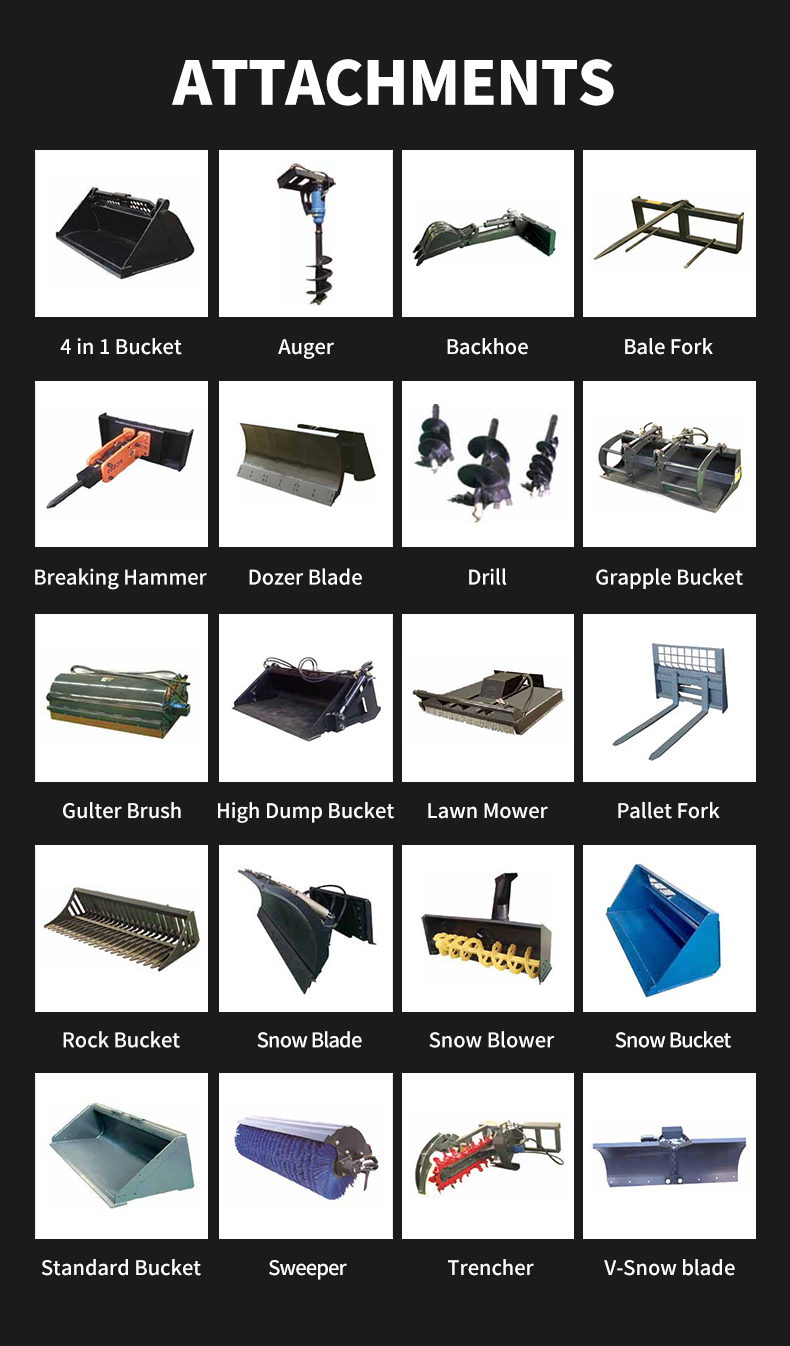

Attachment For Machine

The machine can be equipped with various accessories to achieve multiple functions. Free quick-change is provided, making accessory replacement smoother and more convenient. If the assistive devices you need are not listed in the table, you can send me a picture; we support customization.
